Round Track Hangers/Trolleys

To provide a smoother, quieter operation, we recommend plastic wheel trolleys with ball bearings for our round track.

Plastic Wheel Rollers with Ball Bearings

RBP-103-T
Features pivot and swing action.
With a 1/2" x 4" bolt, and two nuts.
Plastic wheels and ball bearings.

RBP-203-L
Adjustable, pivot and swing action with single strap apron. For doors 1-1/2" to 2-3/8" thick.
Includes four 5/16" carriage bolts per pair.
Plastic wheels with ball bearings.

RBP-303-T
Combines bolt-through simplicity and economy with pivot/swing action. A 1/2" x 9" offset bolt adjusts easily and uses an original girt clip. Generous vertical adjustment accommodates a variety of door materials.
Plastic wheels with ball bearings.

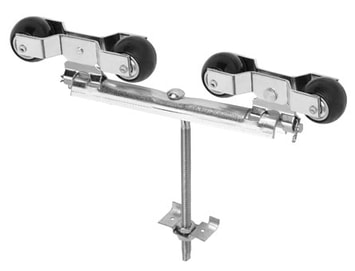

DTRBP-303-T
Double truck trolley assembly – Plastic wheels with ball bearings
and 9-1/2" bolts for use on doors weighing
up to 600 lbs. and 16' wide and larger.

Steel Wheel Rollers with Ball Bearings

RB-103-T
Features pivot and swing action.
With a 1/2" x 4" bolt, and two nuts.
Steel wheels with ball bearings.

RB-203-L
Adjustable, pivot and swing action with single strap apron. For doors 1-1/2" to 2-3/8" thick.
Includes four 5/16" carriage bolts per pair.
Steel wheels with ball bearings.

RB-303-T
Combines bolt-through simplicity and economy with pivot/swing action. A 1/2" x 9" offset bolt adjusts easily and uses an original girt clip. Generous vertical adjustment accommodates a variety of door materials.
Steel wheels with ball bearings.

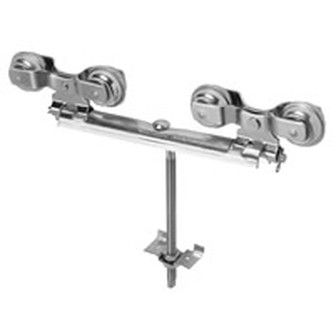

DTRB-303-T
Double truck trolley assembly – steel wheels with ball bearings
and 9-1/2" bolts for use on doors weighing
up to 600 lbs. and 16' wide and larger.

Plastic Wheel Rollers with Bronze Bushings

103-T
Features pivot and swing action.
With a 1/2" x 4" bolt, and two nuts.

203-L
Adjustable, pivot/swing action with single strap apron.
For doors 1-1/2" to 2-3/8" thick.
Includes four 5/16" carriage bolts per pair.

303-T
Combines bolt-through simplicity and economy with pivot/swing action. A 1/2" x 9" offset bolt adjusts easily and uses an original girt clip. Generous vertical adjustment accommodates a variety of door materials.

round Track Hangers//Trolleys

The Round Track Sliding Barn Door Trolleys fit all standard Round Rail Barn Door Track options.

#3 Round Track Brackets

For #3 Slotted Round Track Only
(#3A & #3B Track Systems have brackets pre-attached at the factory.)
