#4 Heavy Duty
1000 lb
Capacity Brackets

These brackets are 1,000 lb capacity when properly spaced and used with our #4 Heavy Duty Box Track and Heavy Duty Box Track Rollers.  Single brackets should be placed 16" to 18" on center and heavy duty double bracket spacing is 12" on center.  Brackets are made of heavy-duty 3/16" steel, with zinc-plated finish.
Mounting holes accommodate 3/4" bolts or lag screws.
(Not included)

---

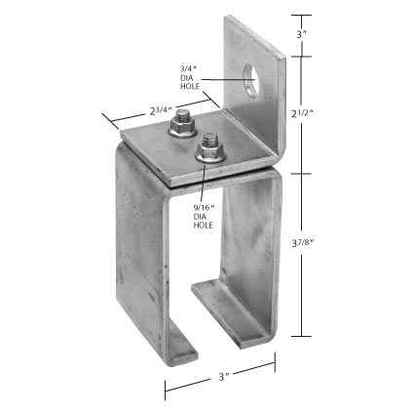

9-4C Heavy Duty Single Wall Bracket

9-4J Heavy Duty Single Splice Bracket

---

4-4C Heavy Duty Ceiling Bracket

---

8-4C Heavy Duty Double Wall Bracket

8-4J Heavy Duty Double Splice Bracket

---
