Round Track
600 lb Capacity
Round Track Options
Round Track - 14 gauge galvanized steel for doors weighing up to 600 lbs. 600-lb. capacity round track will provide years of smooth, easy gliding operation. The self-cleaning design and corrosive resistant 14 gauge galvanized construction features are available in track slotted with a full keyway (#3 track), in track with brackets attached at the factory for top mounting (#3A), and in track with factory-attached brackets for face-mounting (#3B). Slots/brackets are positioned 12" from end, 24" on center, on track sections in your choice of the following lengths for all three track products: 8' 10' 12' 14' 16' 20' 24'. We now have #3 Round Track 6' sections available. In addition to offering track sections with factory mounted brackets, our supplier has engineered the keyway slots in the #3 track with two-way movement options, allowing for easy "knock-on" application in the field. Knock all brackets in the same direction (left or right) until the last bracket, where the direction is reversed to make a positive lock.
Round Track - 14 gauge galvanized steel for doors weighing up to 600 lbs. 600-lb. capacity round track will provide years of smooth, easy gliding operation. The self-cleaning design and corrosive resistant 14 gauge galvanized construction features are available in track slotted with a full keyway (#3 track), in track with brackets attached at the factory for top mounting (#3A), and in track with factory-attached brackets for face-mounting (#3B). Slots/brackets are positioned 12" from end, 24" on center, on track sections in your choice of the following lengths for all three track products: 8' 10' 12' 14' 16' 20' 24'. We now have #3 Round Track 6' sections available. In addition to offering track sections with factory mounted brackets, our supplier has engineered the keyway slots in the #3 track with two-way movement options, allowing for easy "knock-on" application in the field. Knock all brackets in the same direction (left or right) until the last bracket, where the direction is reversed to make a positive lock.
The Round Track Sliding Barn Door Trolleys fit all standard Round Rail Barn Door Track options.

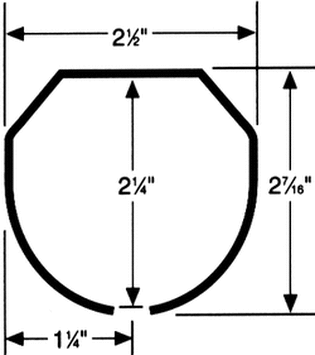

#3 Round Track Systems
#3 Slotted Round Track
(Brackets sold separately for single and double track runs.) Available lengths: 8' 10' 12' 14' 16' 20' 24' |
|
#3 Round Track Packages
For approximate weight of up to 600 pounds, #3 round rail requires track brackets mounted to the header every 2 feet.
Round rail sliding hardware is for both exterior and interior use and can give an industrial look to modern doors or rustic barn doors.
Trolley/Hanger wheels roll inside a galvanized steel round rail. Available in galvanized steel with an industrial mill finish.
Lead time is 5 business days from paid order to ship date. Contact us for more information about Round Track Systems.
For approximate weight of up to 600 pounds, #3 round rail requires track brackets mounted to the header every 2 feet.
Round rail sliding hardware is for both exterior and interior use and can give an industrial look to modern doors or rustic barn doors.
Trolley/Hanger wheels roll inside a galvanized steel round rail. Available in galvanized steel with an industrial mill finish.
Lead time is 5 business days from paid order to ship date. Contact us for more information about Round Track Systems.

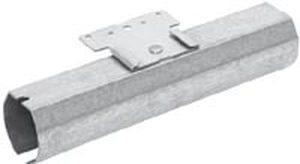

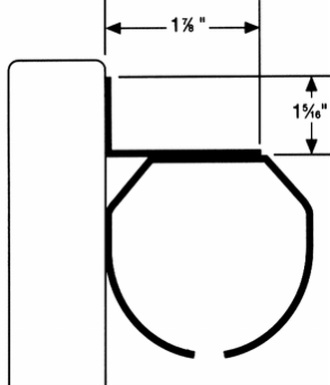

#3A Top Mount Round Track Systems
#3A Round Track
(Brackets for top mounting attached at the factory.) Available lengths: 8' 10' 12' 14' 16' 20' 24' |
|

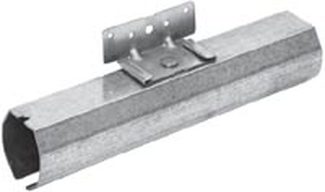

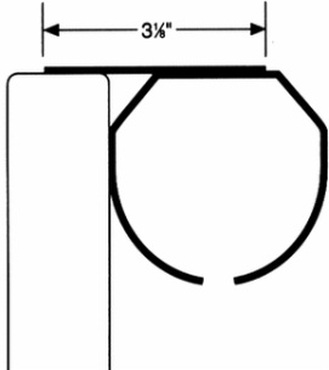

#3B Face Mount Round Track Systems
#3B Round Track
(Brackets for face-mounting attached at the factory.) Available lengths: 8' 10' 12' 14' 16' 20' 24' |
|
Round Track Accessories
SC-3 Track Splice Collar
|
SC-3
Track splice collars are used to connect sections of Round Track. |
3-FB Flashing Bracket
|
3-FB
Round-up Flashing bracket taps in with hammer. These brackets will allow you to attach a locally provided round track track cover. |
3 - FB 3.5 Flashing Bracket
|
3 - FB 3.5 Round Track Flashing bracket taps in for 3 1/2" Doors. These brackets will allow you to attach a locally provided round track track cover. |
3-EB End Blind
|
3-EB
End blind with Mounting Bolt. End Blinds do not stop the door. They are not strong enough. End Blinds keep birds from nesting in the track and give the ends of the track a finished look. |
The Round Track Sliding Barn Door Type Trolleys fit all standard Round Rail Barn Door Track options.
For #3 Round Track Only
(#3A & #3B Track Systems have brackets pre-attached at the factory.)
(#3A & #3B Track Systems have brackets pre-attached at the factory.)
