Sliding Door Accessories
Interior Locking Latches
You will need a man door to exit from after securing latches from inside.
 600 Jamb Latch
|
600 Jamb Latch
The 7" Jamb latch/snugger is used on the inside of jamb to secure sliding doors, and can be used for either right or left hand applications. The strike plate is lumber-fit for easy installation. |
610 Center Door Latch
|
610 Center Door Latch
Easily and tightly secures bi-parting doors with cam-action latch. A strong bolt hooks at one end to fit strike plate; opposite end is threaded to allow adjustment of latch tension. For wood doors 1-1/2" or thicker. |

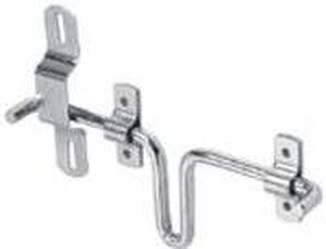

620 Sliding Latch
|
620 Sliding Latch
Reversible, use right or left hand operation. Sturdy 1/2" x 8" solid steel bolt. Zinc plated. Add padlock by placing heavy staple or hasp in slotted handle. Includes fasteners. (Hasp/staple and padlock not included.) |
630 Sliding Bolt Latch
|
630 Sliding Bolt Latch
Ideal for livestock/horse barns, this heavy duty 1/2" x 10" steel bolt doubles as a handle/pull, and may be latched at left or right. Latch bar is secured with two sets of guides and backplates, providing a snug fit with smooth operation. Hardware has rounded edges. Mounting screws included; installation guide illustration is on package label. |
Stay Rollers
Stay rollers act as bottom door guides to help secure sliding doors and prevent doors from swinging out due to the wind. They attach to the wall in the side room.
585 Stay Roller
|
585 Stay Roller
Wall mounted. Adjustable for doors 1-1/4" to 2-5/8" thick. Reversible, 2" non-marking plastic wheel. Frame is 3/16" zinc plated steel, 1-1/4" wide x 4-1/4" long. |
780 Stay Roller
|
780 Stay Roller
Wall mounted with 2" diameter non-marking plastic wheel. Adjustable and reversible for doors 1-1/2" to 2-1/2" thick. Frame is 1/8" thick, 3-1/2" wide, 4" long and zinc plated. |
800 Stay Roller
|
800 Stay Roller
This heavy duty stay roller is fabricated from 3/16" zinc plated steel, and adjusts from 1" to 3-3/4" for a wide range of door widths. Non-marking plastic wheel mounted on sturdy 1/2" bolt. Offset slots allow full contact with door. |
Bow Handle Door Pulls
50-3 Door Pull
|
50-3 Door Pull
This door pull is 1-1/4" wide and has a 6-5/8" overall length. Retains 1-3/4" deep clearance to allow use with gloved hand. Order 50-3 for zinc plated finish, 50-3W for white powder coated. 50-3B for black powder coated. |
50-5 Door Pull
|
50-5 Door Pull
Extra heavy construction for use with heavy doors. With a 7-7/8" over-all length, 2" wide, 7/16" holes. Formed 1-3/4" deep to allow easy use, even with gloved hand. Order 50-5 for zinc plated finish or 50-5W for white powder coated finish. |
Door Stops
Also known as door binders.
537 Single Binder/Stop
|
537 Single Binder/Stop
Offset is 2" x 3-1/4". Overall length is 7" and is fabricated from 3/16" x 1-1/2" zinc plated steel. Holes accept 3/8" bolts or lag screws (not included). For doors up to 2" thick. |
540 Door Binder/Stop
|
540 Door Binder/Stop
For 2" doors, made from rugged zinc-plated steel and ribbed to increase strength. Holes accept 5/16" bolts or lag screws (not included). For doors up to 2" thick. |
545 Adjustable Door Guide/Stop
|
545 Adjustable Door Guide/Stop
Ideal for corrugated metal-clad doors, this adjustable guide may be expanded in width for doors from 2-1/2" to 6" thick. Curved surface gives natural lead-in. The door guide also mounts sideways for use as a stop. Easy to install, available in powder-coated white finish only. |
550 Adjustable Door/Binder Stop
|
550 Adjustable Door/Binder Stop
Heavy duty, adjustable for single side or bi-parting doors. For doors 2-1/2" to 3-1/8" thick. |
560 Jamb Mount Door Stop
|
560 Jamb Mount Door Stop
2-1/2" x 8-1/2" galvanized steel unit extends from jamb to stop and hold doors in open or closed position. |
Door Guides
320 Center Guide/Stop
|
320 Center Guide/Stop
The 320 center guide and stop may be mounted to a 6" x 6" post or imbedded in concrete. Fasteners for mounting center guide are NOT included. Ramped design allows this guide to be driven over without hurting tires. |
520 Center Guide/Stop
|
520 Center Guide/Stop
The 520 center guide installs on 6 x 6 post or in concrete, in the center of split doors or a large single door. For use in pairs. Sold by the pair. |
790 Center Door Guide
|
790 Center Door Guide
The 790 center door guide is adjustable for single sliding doors 1-1/2" to 3-1/4" thick. Install as shown with screws and lead anchors after final adjustments have been made to level and plumb the door. |
Supplementary Sliding Door Hardware Accessories
Ancillary Sliding Door Hardware for All Types of Track
528 Stake Holder
|
528 Stake Holder
Ideal for vertical post applications. This design prevents tapered 2 x 4 from sliding through holder. Heavy duty steel construction. (1-3/4" x 3") |

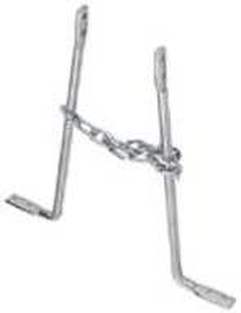

900 Chain Snugger
|
900 Chain Snugger
Ring and hook simply secure a chain to desired length for holding bi-parting sliding door leaves together. Designed for use with clad wood-frame doors, rods mount on opposite sides of joining door verticals, angling upward from horizontal door spacers toward the inside of verticals where the doors meet. The chain will then drop to lowest position for a snug fit. |
624 Cane Bolt
|
624 Cane Bolt Heavy duty deluxe cane bolt has zinc plated 5/8" diameter rod, 24" in length. Fancy mounting brackets and screws included. |
618 Cane Bolt
|
618 Cane Bolt Deluxe cane bolt has zinc plated 1/2" diameter rod, 18" in length. Fancy mounting brackets and screws included. |
