#3 Round Track
600 lb Capacity

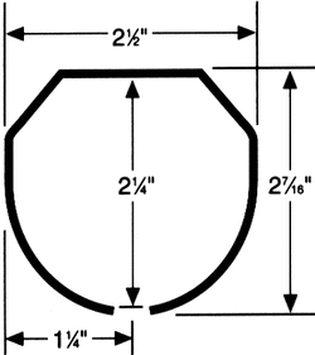

Round Track - 14 gauge galvanized steel for doors weighing up to 600 lbs.
600-lb. capacity round track will provide years of smooth, easy gliding operation. The self-cleaning design and corrosive resistant 14 gauge galvanized construction features are available in track slotted with a full keyway (#3 track). Slots are positioned 12" from end, 24" on center, on track sections in your choice of the following lengths: 6', 8' 10' 12' 14' 16' 20' 24'. Our supplier has engineered the keyway slots in this track with two-way movement options, allowing for easy "knock-on" application in the field. Knock all brackets in the same direction (left or right) until the last bracket, where the direction is reversed to make a positive lock.
600-lb. capacity round track will provide years of smooth, easy gliding operation. The self-cleaning design and corrosive resistant 14 gauge galvanized construction features are available in track slotted with a full keyway (#3 track). Slots are positioned 12" from end, 24" on center, on track sections in your choice of the following lengths: 6', 8' 10' 12' 14' 16' 20' 24'. Our supplier has engineered the keyway slots in this track with two-way movement options, allowing for easy "knock-on" application in the field. Knock all brackets in the same direction (left or right) until the last bracket, where the direction is reversed to make a positive lock.
#3 Slotted Round Track
(Brackets sold separately for single and double track runs.) Available lengths: 8' 10' 12' 14' 16' 20' 24' |
|
#3 Round Track Packages
For approximate weight of up to 600 pounds, #3 round rail requires track brackets mounted to the header every 2 feet for single track runs.
Round rail sliding hardware is for both exterior and interior use and can give an industrial look to modern doors or rustic barn doors.
Trolley/Hanger roller wheels roll inside a galvanized steel round rail. Available in galvanized steel with an industrial mill finish.
Lead time is 5 business days from paid order to ship date. Contact us for more information about #3 Slotted Round Track Systems.
For approximate weight of up to 600 pounds, #3 round rail requires track brackets mounted to the header every 2 feet for single track runs.
Round rail sliding hardware is for both exterior and interior use and can give an industrial look to modern doors or rustic barn doors.
Trolley/Hanger roller wheels roll inside a galvanized steel round rail. Available in galvanized steel with an industrial mill finish.
Lead time is 5 business days from paid order to ship date. Contact us for more information about #3 Slotted Round Track Systems.
#3 Track Packages
Sliding Packages with #3 Track and Choice of Trolley/Hanger Styles
For approximate weight of up to 600 pounds.
Contact us for pricing on longer track sections.
The #3 round rail kit is a single track only. For other applications, please email us or call 740-972-2275.
Sliding Packages with #3 Track and Choice of Trolley/Hanger Styles
For approximate weight of up to 600 pounds.
Contact us for pricing on longer track sections.
The #3 round rail kit is a single track only. For other applications, please email us or call 740-972-2275.
3-ASB Adjustable Single Brackets are included in the packages below. Contact us for other bracket styles.
3-ASB Adjustable Single Bracket
Wall mounted, and used at two-foot intervals to mount single track runs to the face of the building.
Wall mounted, and used at two-foot intervals to mount single track runs to the face of the building.
6' #3 Round Track Packages for ONE door Include:
(1 pair) Trolleys/Hangers,
(4) 3-ASB Wall Brackets, and
(1) 6 ft. section of #3 round rail track
This 6' rail package kit can accommodate one 3' wide door.
(1 pair) Trolleys/Hangers,
(4) 3-ASB Wall Brackets, and
(1) 6 ft. section of #3 round rail track
This 6' rail package kit can accommodate one 3' wide door.
|
8' #3 Round Track Packages for ONE door Include:
(1 pair) Trolleys/Hangers, (5) 3-ASB Wall Brackets, and (1) 8 ft. section of #3 round rail track This 8' rail package kit can accommodate one 4' wide door. |
8' #3 Round Track Packages for TWO doors Include:
(2 pair) Trolleys/Hangers, (5) 3-ASB Wall Brackets, and (1) 8 ft. section of #3 round rail track This 8' rail package kit can accommodate two 2' wide doors. |
|
12' #3 Round Track Packages for ONE door Include:
(1 pair) Trolleys/Hangers, (8) 3-ASB Wall Brackets, (1) SC-3 HD Splice Collar, and (2) 6 ft. section of #3 round rail track This 12' rail package kit can accommodate one 6' wide door. |
12' #3 Round Track Packages for TWO doors Include:
(2 pair) Trolleys/Hangers, (8) 3-ASB Wall Brackets, (1) SC-3 HD Splice Collar, and (2) 6 ft. section of #3 round rail track This 12' rail package kit can accommodate two 3' wide doors. |
|
14' #3 Round Track Packages for ONE door Include:
(1 pair) Trolleys/Hangers, (9) 3-ASB Wall Brackets, (1) SC-3 HD Splice Collar, (1) 6 ft. section of #3 round rail track, and (1) 8 ft. section of #3 round rail track This 14' rail package kit can accommodate one 7' wide door. |
14' #3 Round Track Packages for TWO doors Include:
(2 pair) Trolleys/Hangers, (9) 3-ASB Wall Brackets, (1) SC-3 HD Splice Collar, (1) 6 ft. section of #3 round rail track, and (1) 8 ft. section of #3 round rail track This 14' rail package kit can accommodate two 3'-6" wide doors. |
|
16' #3 Round Track Packages for ONE door Include:
(1 pair) Trolleys/Hangers, (10) 3-ASB Wall Brackets, (1) SC-3 HD Splice Collar, and (2) 8 ft. section of #3 round rail track This 16' rail package kit can accommodate one 8' wide door. |
16' #3 Round Track Packages for TWO doors Include:
(2 pair) Trolleys/Hangers, (10) 3-ASB Wall Brackets, (1) SC-3 HD Splice Collar, and (2) 8 ft. section of #3 round rail track This 16' rail package kit can accommodate two 4' wide doors. |
|
18' #3 Round Track Packages for ONE door Include:
(1 pair) Trolleys/Hangers, (11) 3-ASB Wall Brackets, (2) SC-3 HD Splice Collar, and (3) 6 ft. section of #3 round rail track This 18' rail package kit can accommodate one 9' wide door. |
18' #3 Round Track Packages for TWO doors Include:
(2 pair) Trolleys/Hangers, (11) 3-ASB Wall Brackets, (2) SC-3 HD Splice Collar, and (3) 6 ft. section of #3 round rail track This 18' rail package kit can accommodate two 4'-6" wide doors. |
|
20' #3 Round Track Packages for ONE door Include:
(1 pair) Trolleys/Hangers, (12) 3-ASB Wall Brackets, (2) SC-3 HD Splice Collar, (2) 6 ft. section of #3 round rail track, and (1) 8 ft. section of #3 round rail track This 20' rail package kit can accommodate one 10' wide door. |
20' #3 Round Track Packages for TWO doors Include:
(2 pair) Trolleys/Hangers, (12) 3-ASB Wall Brackets, (2) SC-3 HD Splice Collar, (2) 6 ft. section of #3 round rail track, and (1) 8 ft. section of #3 round rail track This 20' rail package kit can accommodate two 5' wide doors. |
|
22' #3 Round Track Packages for ONE door Include:
(1 pair) Trolleys/Hangers, (13) 3-ASB Wall Brackets, (2) SC-3 HD Splice Collar, (1) 6 ft. section of #3 round rail track, and (2) 8 ft. section of #3 round rail track This 22' rail package kit can accommodate one 11' wide door. |
22' #3 Round Track Packages for TWO doors Include:
(2 pair) Trolleys/Hangers, (13) 3-ASB Wall Brackets, (2) SC-3 HD Splice Collar, (1) 6 ft. section of #3 round rail track, and (2) 8 ft. section of #3 round rail track This 22' rail package kit can accommodate two 5'-6" wide doors. |
|
24' #3 Round Track Packages for ONE door Include:
(1 pair) Trolleys/Hangers, (14) 3-ASB Wall Brackets, (2) SC-3 HD Splice Collar, and (3) 8 ft. section of #3 round rail track This 24' rail package kit can accommodate one 12' wide door. |
24' #3 Round Track Packages for TWO doors Include:
(2 pair) Trolleys/Hangers, (14) 3-ASB Wall Brackets, (2) SC-3 HD Splice Collar, and (3) 8 ft. section of #3 round rail track This 24' rail package kit can accommodate two 6' wide doors. |
Round Track Accessories
SC-3 Track Splice Collar
|
SC-3
Track splice collars are used to connect sections of Round Track. |
3-FB Flashing Bracket
|
3-FB
Round-up Flashing bracket taps in with hammer. These brackets will allow you to attach a locally provided round track track cover. |
3 - FB 3.5 Flashing Bracket
|
3 - FB 3.5
Round Track Flashing bracket taps in for 3 1/2" Doors. These brackets will allow you to attach a locally provided round track track cover. |
3-EB End Blind
|
3-EB
End blind with Mounting Bolt. End Blinds do not stop the door. They are not strong enough. End Blinds keep birds from nesting in the track and give the ends of the track a finished look. |
The Round Track Sliding Barn Door Type Trolleys fit all standard Round Rail Barn Door Track options.
For #3 Round Track Only
(#3A & #3B Track Systems have brackets pre-attached at the factory.)
(#3A & #3B Track Systems have brackets pre-attached at the factory.)
|
Please check out our Sliding Door Accessories such as Door Stops, Door Pulls, Interior Latches, Stay Rollers, Bottom Guides and more!
|
