#9 Standard Box Track
400 lb Capacity
#9 Box Track
|

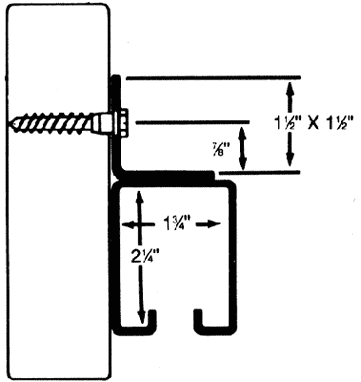

#9 Box Track Dimensions
|

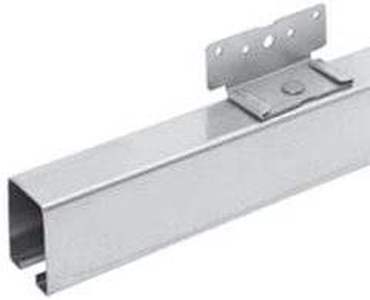

#9 Standard Box Track
Face-mount track attaches with 5/16" lag screws or bolts. Mounting brackets are approximately 24" on center and attached with rivets at the factory.
Available lengths: 6' 8' 10' 12' 14' 16' 18' 20' 24'
Face-mount track attaches with 5/16" lag screws or bolts. Mounting brackets are approximately 24" on center and attached with rivets at the factory.
Available lengths: 6' 8' 10' 12' 14' 16' 18' 20' 24'
|
Want to attach your own locally provided track cover to our #9 track? Use our tap-in flashing brackets. (3-FB Flashing Track Cover Brackets) Our 3-FB Flashing Brackets fit with the pre-attached brackets of the #9 & #10 track. Flashing brackets provide support for compatible flashing. Compatible flashing not provided. |

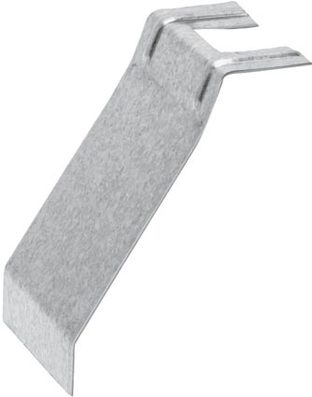

3-FB Flashing Track Cover Brackets
|
#9 Track Packages
Sliding Packages with #9 Track and Choice of Trolley/Hanger Styles
For approximate weight of up to 400 pounds, #9 box rail requires no track brackets.
Contact us for pricing on longer track sections.
The #9 box rail kit is a single track only. For other applications, please email us or call 740-972-2275.
Sliding Packages with #9 Track and Choice of Trolley/Hanger Styles
For approximate weight of up to 400 pounds, #9 box rail requires no track brackets.
Contact us for pricing on longer track sections.
The #9 box rail kit is a single track only. For other applications, please email us or call 740-972-2275.
6' #9 Box Track Packages Include:
(1 pair) Trolleys/Hangers and
(1) 6 ft. section of #9 box rail track
This 6' rail package kit can accommodate one 3' wide door.
(1 pair) Trolleys/Hangers and
(1) 6 ft. section of #9 box rail track
This 6' rail package kit can accommodate one 3' wide door.
|
8' #9 Box Track Packages for ONE door Include:
(1 pair) Trolleys/Hangers and (1) 8 ft. section of #9 box rail track This 8' rail package kit can accommodate one 4' wide door. |
8' #9 Box Track Packages for TWO doors Include:
(2 pair) Trolleys/Hangers and (1) 8 ft. section of #9 box rail track This 8' rail package kit can accommodate two 2' wide doors. |
|
12' #9 Box Track Packages for ONE door Include:
(1 pair) Trolleys/Hangers and (2) 6 ft. section of #9 box rail track This 12' rail package kit can accommodate one 6' wide door. |
12' #9 Box Track Packages for TWO doors Include:
(2 pair) Trolleys/Hangers and (2) 6 ft. section of #9 box rail track This 12' rail package kit can accommodate two 3' wide doors. |
|
14' #9 Box Track Packages for ONE door Include:
(1 pair) Trolleys/Hangers, (1) 6 ft. section of #9 box rail track and (1) 8 ft. section of #9 box rail track This 14' rail package kit can accommodate one 7' wide door. |
14' #9 Box Track Packages for TWO doors Include:
(2 pair) Trolleys/Hangers, (1) 6 ft. section of #9 box rail track and (1) 8 ft. section of #9 box rail track This 14' rail package kit can accommodate two 3'-6" wide doors. |
|
16' #9 Box Track Packages for ONE door Include:
(1 pair) Trolleys/Hangers and (2) 8 ft. section of #9 box rail track This 16' rail package kit can accommodate one 8' wide door. |
16' #9 Box Track Packages for TWO doors Include:
(2 pair) Trolleys/Hangers and (2) 8 ft. section of #9 box rail track This 16' rail package kit can accommodate two 4' wide doors. |
|
18' #9 Box Track Packages for ONE door Include:
(1 pair) Trolleys/Hangers and (3) 6 ft. section of #9 box rail track This 18' rail package kit can accommodate one 9' wide door. |
18' #9 Box Track Packages for TWO doors Include:
(2 pair) Trolleys/Hangers and (3) 6 ft. section of #9 box rail track This 18' rail package kit can accommodate two 4'-6" wide doors. |
|
20' #9 Box Track Packages for ONE door Include:
(1 pair) Trolleys/Hangers, (2) 6 ft. section of #9 box rail track and (1) 8 ft. section of #9 box rail track This 20' rail package kit can accommodate one 10' wide door. |
20' #9 Box Track Packages for TWO doors Include:
(2 pair) Trolleys/Hangers, (2) 6 ft. section of #9 box rail track and (1) 8 ft. section of #9 box rail track This 20' rail package kit can accommodate two 5' wide doors. |
|
22' #9 Box Track Packages for ONE door Include:
(1 pair) Trolleys/Hangers, (1) 6 ft. section of #9 box rail track and (2) 8 ft. section of #9 box rail track This 22' rail package kit can accommodate one 11' wide door. |
22' #9 Box Track Packages for TWO doors Include:
(2 pair) Trolleys/Hangers, (1) 6 ft. section of #9 box rail track and (2) 8 ft. section of #9 box rail track This 22' rail package kit can accommodate two 5'-6" wide doors. |
|
24' #9 Box Track Packages for ONE door Include:
(1 pair) Trolleys/Hangers and (3) 8 ft. section of #9 box rail track This 24' rail package kit can accommodate one 12' wide door. |
24' #9 Box Track Packages for TWO doors Include:
(2 pair) Trolleys/Hangers and (3) 8 ft. section of #9 box rail track This 24' rail package kit can accommodate two 6' wide doors. |
|
Add #9 Track End Blinds (7-8-EB End Blinds) to your package.
#9 Track End Caps fit at the end of the track to keep it free from birds, weather and other obstructions. End Blinds do not stop the door. They keep birds out of the track and give the track ends a finished look. Add 2 end blinds to any Box Track Package for $4. Please contact us for this price. |
#9 Track End Blinds (7-8 EB End Blinds)
|
Please check out our Sliding Door Accessories such as Door Stops, Door Pulls, Interior Latches, Stay Rollers, Bottom Guides and more!
