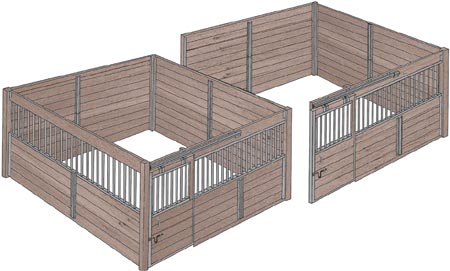

Horse Stalls
Our Horse Stalls are not only attractive, but tough as nails with maximum ease of assembly.
Our Horse Stalls are engineered to provide the ultimate in design, flexibility and safety for your horses.
The versatility of our Horse Stalls allows you to mix and match components to customize your stall to fit your specific needs. Safety has also been engineered into every stall, with no exposed edges for horses to chew, no hardware or sharp edges to rub against and no protruding objects to step on.
We then finish each component with an attractive black powder coating to accent the beauty of your stalls.
Our Horse Stalls are engineered to provide the ultimate in design, flexibility and safety for your horses.
The versatility of our Horse Stalls allows you to mix and match components to customize your stall to fit your specific needs. Safety has also been engineered into every stall, with no exposed edges for horses to chew, no hardware or sharp edges to rub against and no protruding objects to step on.
We then finish each component with an attractive black powder coating to accent the beauty of your stalls.
Door and Wall Systems
Components are available in black, powder-coat finish, only. Our Stall Kits may be used in a wide range of fabricating techniques. Shown below is just one example of how to build a front wall. (Measurements may be calculated in the field.)
Components are available in black, powder-coat finish, only. Our Stall Kits may be used in a wide range of fabricating techniques. Shown below is just one example of how to build a front wall. (Measurements may be calculated in the field.)
Horse Stall Sliding Door Kit
Front Wall System
Door dimensions are 48" wide, 86" high. Overhead clearance must be at least 94 1/2" to accommodate the door, trolley, and track.
10' Front (80010) | 12' Front (80012)
System comes complete with the following:
Door dimensions are 48" wide, 86" high. Overhead clearance must be at least 94 1/2" to accommodate the door, trolley, and track.
10' Front (80010) | 12' Front (80012)
System comes complete with the following:
- (2) Grille Sections
- 10' front includes (1) 24" (80240) and (1) 48" (80480)
- 12' front includes (2) 48" (80480)
- (2) End channels (80045)
- (4) Header Channels (80006)
- (1) Wall Brace (84545)
- (8) 2" x 6" x 6'
- (1) 2" x 12" x 10' track board.
- (9) 2" x 6" x 8'
- (1) 2" x 12" x 12' track board.

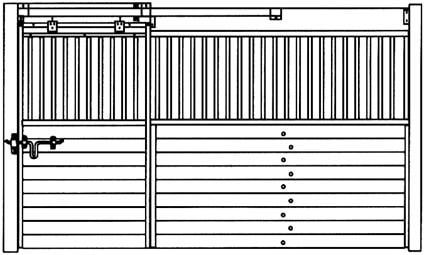

Horse Stall Front Wall System
Side Wall System
10' Partition (81048) | 12' Partition (81248)
System comes complete with the following:
10' Partition (81048) | 12' Partition (81248)
System comes complete with the following:
- (3) Grille sections
- 10' front wall includes (2) 48" (80480) and (1) 24" (80240)
- 12' front includes (3) 48" (80480)
- (2) End channels (80045)
- (2) Header Channels (80006)
- (1) Wall Brace (84545)
- (11) 2" x 6" x 10' for 10'
- (11) 2" x 6" x 12' for 12'

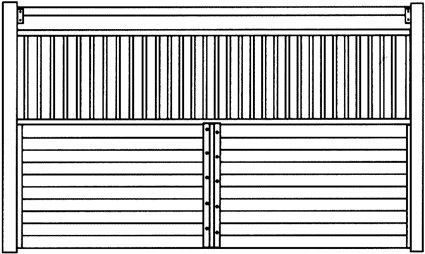

Horse Stall Side Wall System
Partition or Rear Wall System
10' or 12' Section (80445)
System comes complete with the following:
10' or 12' Section (80445)
System comes complete with the following:
- (4) End channels (80045)
- (2) Wall Braces (84545)
- (17) 2" x 6" equal to desired wall length

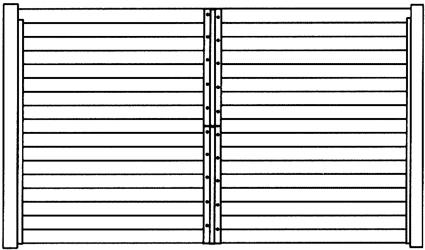

Horse Stall Partition or Rear Wall System
Horse Stall Accessories
Horse Stall Drop-Down Door Grill (80350)
Features 1" round 14 ga. tubing welded 3" o/c., in 14 ga. channels that are lumber fit for 2 x 6 or 2 x 8 standard lumber. Available in a 36" x 45" section, with a 23" x 35" opening and is black powder coated.
Features 1" round 14 ga. tubing welded 3" o/c., in 14 ga. channels that are lumber fit for 2 x 6 or 2 x 8 standard lumber. Available in a 36" x 45" section, with a 23" x 35" opening and is black powder coated.

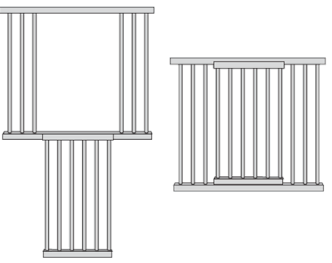

Horse Stall Drop-Down Door Grill (80350)
Swing Out Utility Door (82022)
Made of heavy duty 12 guage steel mounted on a sturdy angle iron frame. Accommodates a wide variety of feeders, buckets, and bucket holders. Can be installed to swing out from left or right by simply inverting the frame. Latch is designed so that the door cannot be opened from the inside. Outside dimensions are 24-3/4" high x 22-1/2" wide. (Bucket not included.)
Made of heavy duty 12 guage steel mounted on a sturdy angle iron frame. Accommodates a wide variety of feeders, buckets, and bucket holders. Can be installed to swing out from left or right by simply inverting the frame. Latch is designed so that the door cannot be opened from the inside. Outside dimensions are 24-3/4" high x 22-1/2" wide. (Bucket not included.)
Swing Out Utility Door (82022)
Bucket Holder (82032)
Constructed of 1/2" round steel bar stock welded to 1" wide 11 gauge mounting plates wiht four holse for rigid mounting. Inside dimensions are 12-1/2" wide x 12=1/2" deep x 11" high. (Fasteners not included.)
Constructed of 1/2" round steel bar stock welded to 1" wide 11 gauge mounting plates wiht four holse for rigid mounting. Inside dimensions are 12-1/2" wide x 12=1/2" deep x 11" high. (Fasteners not included.)

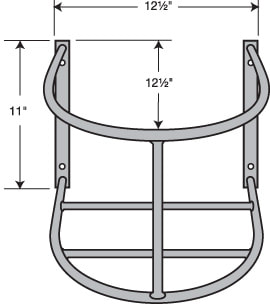

Horse Stall Bucket Holder (82032)
Swing Out Hay/Grain Feeder (82448)
Our best feeder, this front wall mounted feeder is fully reversible by switching hinge pin for left or right side mounting. Hay rack privides ample room for a generous flake. Welded angle supports for mounting plastic corner bucket. (Bucket not included.) Powder coated black with a #630 sliding latch included.
Our best feeder, this front wall mounted feeder is fully reversible by switching hinge pin for left or right side mounting. Hay rack privides ample room for a generous flake. Welded angle supports for mounting plastic corner bucket. (Bucket not included.) Powder coated black with a #630 sliding latch included.
Swing Out Hay/Grain Feeder (82448)
|

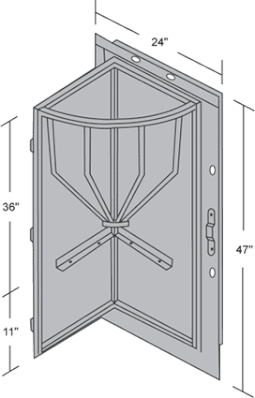

Swing Out Hay/Grain Feeder Dimensions (82448)
|
Feed Chute Grille (80481)
Features 1" round 14 ga. tubing welded 3" o/c., and 14 ga. channel-lumber fit for 2 x 6 or 2 x 8 standard lumber. Black powder coating. Available in 48" wide x 36" high sections with 9" x 9" opening.
Features 1" round 14 ga. tubing welded 3" o/c., and 14 ga. channel-lumber fit for 2 x 6 or 2 x 8 standard lumber. Black powder coating. Available in 48" wide x 36" high sections with 9" x 9" opening.
Horse Stall Feed Chute Grille (80481)
