Standard Box Track
400 lb Capacity
|
|
Box Rail Options
Our standard box track is made of 16 gauge galvanized steel.
The standard box rail shown below is designed for doors weighing up to 400 lbs.
(If you need to hold more weight, our heavy duty box track, 13 gauge galvanized, is made for doors weighing up to 1000 lbs.)
To order, specify track number and length.
All standard box tracks have mounting brackets pre-attached at the factory except the #2 track standard box track.
#2 Standard Box Track Brackets are sold separately.
Available in galvanized steel with an industrial mill finish,
box rail sliding hardware is for both exterior and interior use and
can give an industrial look to modern doors or rustic barn doors.
Trolley/Hanger wheels roll inside a galvanized steel 16 gauge box rail.
Unless you purchase a package, Hangers/Trolleys/Rollers for all Standard Box Track are sold separately.
Ask us to put together a custom package for you today!
All parts here are for manually operated doors.
Please contact us if you need hardware for power-operated doors.
Our standard box track is made of 16 gauge galvanized steel.
The standard box rail shown below is designed for doors weighing up to 400 lbs.
(If you need to hold more weight, our heavy duty box track, 13 gauge galvanized, is made for doors weighing up to 1000 lbs.)
To order, specify track number and length.
All standard box tracks have mounting brackets pre-attached at the factory except the #2 track standard box track.
#2 Standard Box Track Brackets are sold separately.
Available in galvanized steel with an industrial mill finish,
box rail sliding hardware is for both exterior and interior use and
can give an industrial look to modern doors or rustic barn doors.
Trolley/Hanger wheels roll inside a galvanized steel 16 gauge box rail.
Unless you purchase a package, Hangers/Trolleys/Rollers for all Standard Box Track are sold separately.
Ask us to put together a custom package for you today!
All parts here are for manually operated doors.
Please contact us if you need hardware for power-operated doors.
#2 Box Rail/Track
|
#2 Box Rail/Track Dimensions
|
This is our most versatile and popular box rail option. Use this track with any Box Track Brackets and Hangers. For single track runs, space brackets 24" on center. Double-track runs require brackets every 18" on center. Our #2 box track is made of 16 gauge galvanized steel. Track brackets and trolleys are sold separately unless you purchase a package.
Available lengths: 6' 8' 10' 12' 14' 16' 18' 20' 24'
Available lengths: 6' 8' 10' 12' 14' 16' 18' 20' 24'

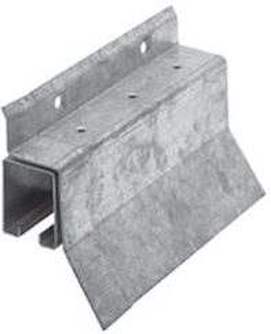

#7 Box Track
|

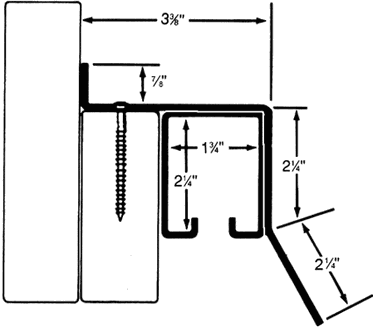

#7 Box Track Dimensions
|
Works well with new construction or remodeling projects. Extra-wide galvanized cover is mechanically attached to box track and shields top of door from rain, snow, and ice. No brackets or flashing required. Mount with 5/16" lag screws or bolts.
Trolleys are sold separately unless you purchase a package.
Available lengths: 8' 10' 12' 14' 16' 18' 20' 24'
Trolleys are sold separately unless you purchase a package.
Available lengths: 8' 10' 12' 14' 16' 18' 20' 24'

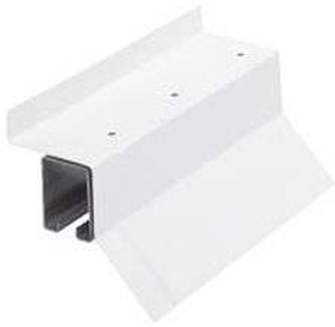

#8 Box Track
|

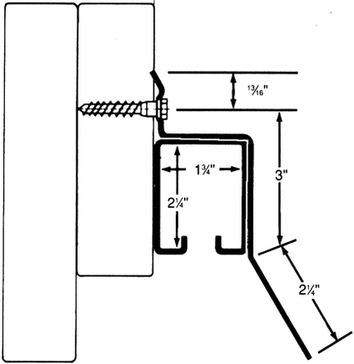

#8 Box Track Dimensions
|
The ultimate labor-saving track. No brackets or flashing required with the pre-painted white cover; attach with 1-1/2" ring-shank neoprene washer nails. White cover is mechanically attached to box track and shields top of door from rain, snow, and ice.
Trolleys are sold separately unless you purchase a package.
Available lengths: 8' 10' 12' 14' 16' 20' 24'
Trolleys are sold separately unless you purchase a package.
Available lengths: 8' 10' 12' 14' 16' 20' 24'
#9 Box Track
|

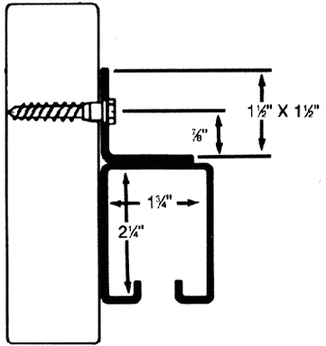

#9 Box Track Dimensions
|
Face-mount track attaches with 5/16" lag screws or bolts. Mounting brackets are approximately 24" on center and attached with rivets at the factory. Trolleys are sold separately unless you purchase a package.
Available lengths: 6' 8' 10' 12' 14' 16' 18' 20' 24'
Available lengths: 6' 8' 10' 12' 14' 16' 18' 20' 24'
#10 Box Track
|
#10 Box Track Dimensions
|
Top mount track attaches with 1-1/2" ring shank neoprene washer nails. (5/16" lag screws or bolts may also be used if desired.)
Mounting brackets are approximately 24" on center and attached with rivets at the factory.
Trolleys are sold separately unless you purchase a package.
Available lengths: 6' 8' 10' 12' 14' 16' 18' 20' 24'
Mounting brackets are approximately 24" on center and attached with rivets at the factory.
Trolleys are sold separately unless you purchase a package.
Available lengths: 6' 8' 10' 12' 14' 16' 18' 20' 24'

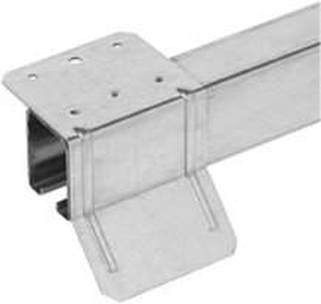

#510 Box Track
|
#510 Box Track Dimensions
|
Top mount track attaches with 1-1/2" ring shank neoprene washer nails. (5/16" lag screws or bolts may also be used if desired.)
Combination mounting/flashing brackets are projection welded at the factory, and are approximately 24" on center.
Trolleys are sold separately unless you purchase a package.
Available lengths: 6' 8' 10' 12' 14' 16' 18' 20' 24'
Combination mounting/flashing brackets are projection welded at the factory, and are approximately 24" on center.
Trolleys are sold separately unless you purchase a package.
Available lengths: 6' 8' 10' 12' 14' 16' 18' 20' 24'
Hangers/Trolleys/Rollers for all Standard Box Track are sold separately, unless you purchase a package.
#2 Box Track Brackets are also sold separately, unless you purchase a package. Only the #2 track uses separate brackets.
#2 Box Track Brackets are also sold separately, unless you purchase a package. Only the #2 track uses separate brackets.
Please check out our Sliding Door Accessories such as
Door Stops, Door Pulls, Interior Latches, Stay Rollers, Bottom Guides and more!
Door Stops, Door Pulls, Interior Latches, Stay Rollers, Bottom Guides and more!
|
Do your doors weigh more than 400 lbs each? Check out our other track options!
|
