#510 Standard Box Track
400 lb Capacity

#510 Box Track
#510 Box Track

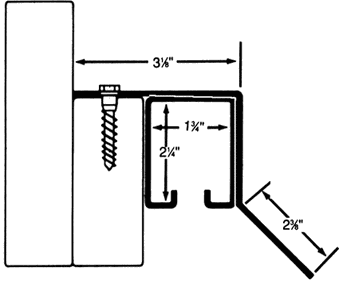

#510 Box Track Dimensions
#510 Box Track Dimensions
#510 Top Mount Standard Box Track with Track Cover Flashing Brackets Attached
(Cover Not Provided)
Top mount track attaches with 1-1/2" ring shank neoprene washer nails. (5/16" lag screws or bolts may also be used if desired.) Combination mounting/flashing brackets are projection welded at the factory, and are approximately 24" on center.
Available lengths: 6' 8' 10' 12' 14' 16' 18' 20' 24'
#510 Track Packages
Sliding Packages with #510 Track and Choice of Trolley/Hanger Styles
For approximate weight of up to 400 pounds, #510 box rail requires no track brackets.
Contact us for pricing on longer track sections.
The #510 box rail kit is a single track only. For other applications, please email us or call 740-972-2275.
6' #510 Box Track Packages Include:
(1 pair) Trolleys/Hangers and
(1) 6 ft. section of #510 box rail track
This 6' rail package kit can accommodate one 3' wide door.
8' #510 Box Track Packages for ONE door Include:
(1 pair) Trolleys/Hangers and
(1) 8 ft. section of #510 box rail track
This 8' rail package kit can accommodate one 4' wide  door.
8' #510 Box Track Packages for TWO doors Include:
(2 pair) Trolleys/Hangers and
(1) 8 ft. section of #510 box rail track
This 8' rail package kit can accommodate two 2' wide  doors.
12' #510 Box Track Packages for ONE door Include:
(1 pair) Trolleys/Hangers and
(2) 6 ft. section of #510 box rail track
This 12' rail package kit can accommodate one 6' wide  door.
12' #510 Box Track Packages for TWO doors Include:
(2 pair) Trolleys/Hangers and
(2) 6 ft. section of #510 box rail track
This 12' rail package kit can accommodate two 3' wide  doors.
14' #510 Box Track Packages for ONE door Include:
(1 pair) Trolleys/Hangers,
(1) 6 ft. section of #9 box rail track and
(1) 8 ft. section of #510 box rail track
This 14' rail package kit can accommodate one 7' wide  door.
14' #510 Box Track Packages for TWO doors Include:
(2 pair) Trolleys/Hangers,
(1) 6 ft. section of #9 box rail track and
(1) 8 ft. section of #510 box rail track
This 14' rail package kit can accommodate two 3'-6" wide  doors.
16' #510 Box Track Packages for ONE door Include:
(1 pair) Trolleys/Hangers and
(2) 8 ft. section of #510 box rail track
This 16' rail package kit can accommodate one 8' wide  door.
16' #510 Box Track Packages for TWO doors Include:
(2 pair) Trolleys/Hangers and
(2) 8 ft. section of #510 box rail track
This 16' rail package kit can accommodate two 4' wide  doors.
18' #510 Box Track Packages for ONE door Include:
(1 pair) Trolleys/Hangers and
(3) 6 ft. section of #510 box rail track
This 18' rail package kit can accommodate one 9' wide  door.
18' #510 Box Track Packages for TWO doors Include:
(2 pair) Trolleys/Hangers and
(3) 6 ft. section of #510 box rail track
This 18' rail package kit can accommodate two 4'-6" wide  doors.
20' #510 Box Track Packages for ONE door Include:
(1 pair) Trolleys/Hangers,
(2) 6 ft. section of #9 box rail track and
(1) 8 ft. section of #510 box rail track
This 20' rail package kit can accommodate one 10' wide  door.
20' #510 Box Track Packages for TWO doors Include:
(2 pair) Trolleys/Hangers,
(2) 6 ft. section of #9 box rail track and
(1) 8 ft. section of #510 box rail track
This 20' rail package kit can accommodate two 5' wide  doors.
22' #510 Box Track Packages for ONE door Include:
(1 pair) Trolleys/Hangers,
(1) 6 ft. section of #9 box rail track and
(2) 8 ft. section of #510 box rail track
This 22' rail package kit can accommodate one 11' wide  door.
22' #510 Box Track Packages for TWO doors Include:
(2 pair) Trolleys/Hangers,
(1) 6 ft. section of #9 box rail track and
(2) 8 ft. section of #510 box rail track
This 22' rail package kit can accommodate two 5'-6" wide  doors.
24' #510 Box Track Packages for ONE door Include:
(1 pair) Trolleys/Hangers and
(3) 8 ft. section of #510 box rail track
This 24' rail package kit can accommodate one 12' wide  door.
24' #510 Box Track Packages for TWO doors Include:
(2 pair) Trolleys/Hangers and
(3) 8 ft. section of #510 box rail track
This 24' rail package kit can accommodate two 6' wide  doors.
Please check out our Sliding Door Accessories such as Door Stops, Door Pulls, Interior Latches, Stay Rollers, Bottom Guides and more!
