#7 Standard Box Track
400 lb Capacity

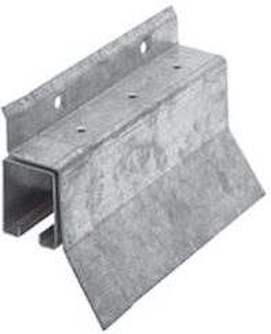

Face Mount Track with Galvanized Steel Track Cover Attached

#7 Box Track
#7 Box Track

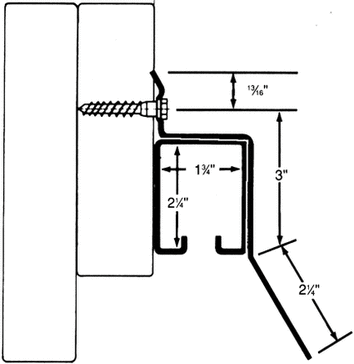

#7 Box Track Dimensions
#7 Box Track Dimensions
#7 Track
Works well with new construction or remodeling projects. Extra-wide galvanized cover is mechanically attached to box track and shields top of door from rain, snow, and ice. No brackets or flashing required. Mount with 5/16" lag screws or bolts.
Available lengths: 8' 10' 12' 14' 16' 18' 20' 24'

#7 Track Packages
8' Sliding Packages with #7 Track and Choice of Trolley/Hanger Styles
For approximate weight of up to 400 pounds, #7 box rail requires no track brackets.
The #7 box rail kit is a single track only. For other applications, please email us or call 740-972-2275.
Contact us for pricing on longer track sections.
Please provide a phone number for residential shipping.
8' #7 Box Track Packages for ONE door Include:
(1 pair) Trolleys/Hangers and
(1) 8 ft. section of #7 box rail track
This 8' rail package kit can accommodate one 4' wide  door.
8' #7 Box Track Packages for TWO doors Include:
(2 pair) Trolleys/Hangers and
(1) 8 ft. section of #7 box rail track
This 8' rail package kit can accommodate two 2' wide  doors.
16' #7 Box Track Packages for ONE door Include:
(1 pair) Trolleys/Hangers and
(2) 8 ft. section of #7 box rail track
This 16' rail package kit can accommodate one 8' wide  door.
16' #7 Box Track Packages for TWO doors Include:
(2 pair) Trolleys/Hangers and
(2) 8 ft. section of #7 box rail track
This 16' rail package kit can accommodate two 4' wide  doors.
24' #7 Box Track Packages for ONE door Include:
(1 pair) Trolleys/Hangers and
(3) 8 ft. section of #7 box rail track
This 24' rail package kit can accommodate one 12' wide  door.
24' #7 Box Track Packages for TWO doors Include:
(2 pair) Trolleys/Hangers and
(3) 8 ft. section of #7 box rail track
This 24' rail package kit can accommodate two 6' wide  doors.
#7 Track End Blinds (7-EB End Blinds)
#7 Track End Blinds fit at the end of the track to keep it free from birds, weather and other obstructions.
End blinds work with #7 track.  Bolt and nut included.
Contact us to add #7 end blinds to your #7 box track package.
End Blinds do not stop the door.
They keep birds out of the track and give the track ends a finished look.
#7 Track End Blinds (7-EB End Blinds)
#7 Track End Blinds (7-EB End Blinds)
Please check out our Sliding Door Accessories such as Door Stops, Door Pulls, Interior Latches, Stay Rollers, Bottom Guides and more!
Sliding Door Accessories
