#3A TOP MOUNT Round Track
600 lb Capacity

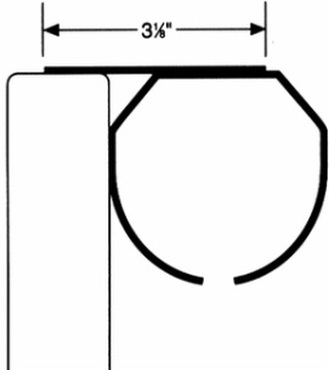

#3A Round Track
(Brackets for top mounting attached at the factory.) Available lengths: 8' 10' 12' 14' 16' 20' 24' |
|
Round Track - 14 gauge galvanized steel for doors weighing up to 600 lbs.
600-lb. capacity round track will provide years of smooth, easy gliding operation. The self-cleaning design and corrosive resistant 14 gauge galvanized construction features are available in track with brackets attached at the factory for top mounting (#3A). Brackets are positioned 12" from end, 24" on center, on track sections in your choice of the following lengths for all three track products: 6' 8' 10' 12' 14' 16' 20' 24'.
Round Track - 14 gauge galvanized steel for doors weighing up to 600 lbs. 600-lb. capacity round track will provide years of smooth, easy gliding operation. The self-cleaning design and corrosive resistant 14 gauge galvanized construction features are available in track slotted with a full keyway (#3 track), in track with brackets attached at the factory for top mounting (#3A), and in track with factory-attached brackets for face-mounting (#3B). Slots/brackets are positioned 12" from end, 24" on center, on track sections in your choice of the following lengths for all three track products: 8' 10' 12' 14' 16' 20' 24'. In addition to offering track sections with factory mounted brackets, our supplier has engineered the keyway slots in its track with two-way movement options, allowing for easy "knock-on" application in the field. Knock all brackets in the same direction (left or right) until the last bracket, where the direction is reversed to make a positive lock.
600-lb. capacity round track will provide years of smooth, easy gliding operation. The self-cleaning design and corrosive resistant 14 gauge galvanized construction features are available in track with brackets attached at the factory for top mounting (#3A). Brackets are positioned 12" from end, 24" on center, on track sections in your choice of the following lengths for all three track products: 6' 8' 10' 12' 14' 16' 20' 24'.
Round Track - 14 gauge galvanized steel for doors weighing up to 600 lbs. 600-lb. capacity round track will provide years of smooth, easy gliding operation. The self-cleaning design and corrosive resistant 14 gauge galvanized construction features are available in track slotted with a full keyway (#3 track), in track with brackets attached at the factory for top mounting (#3A), and in track with factory-attached brackets for face-mounting (#3B). Slots/brackets are positioned 12" from end, 24" on center, on track sections in your choice of the following lengths for all three track products: 8' 10' 12' 14' 16' 20' 24'. In addition to offering track sections with factory mounted brackets, our supplier has engineered the keyway slots in its track with two-way movement options, allowing for easy "knock-on" application in the field. Knock all brackets in the same direction (left or right) until the last bracket, where the direction is reversed to make a positive lock.
#3A Round Track Packages
Sliding Packages with #3A Round Track and Choice of Trolley/Hanger Styles
For approximate weight of up to 600 pounds, #3A round rail requires no track brackets.
Contact us for pricing on longer track sections.
The #3A round rail kit is a single track only. For other applications, please email us or call 740-972-2275.
Sliding Packages with #3A Round Track and Choice of Trolley/Hanger Styles
For approximate weight of up to 600 pounds, #3A round rail requires no track brackets.
Contact us for pricing on longer track sections.
The #3A round rail kit is a single track only. For other applications, please email us or call 740-972-2275.
6' #3A Round Track Packages Include:
(1 pair) Trolleys/Hangers and
(1) 6 ft. section of #3A round rail track
This 6' rail package kit can accommodate one 3' wide door.
(1 pair) Trolleys/Hangers and
(1) 6 ft. section of #3A round rail track
This 6' rail package kit can accommodate one 3' wide door.
|
8' #3A Round Track Packages for ONE door Include:
(1 pair) Trolleys/Hangers and (1) 8 ft. section of #3A round rail track This 8' rail package kit can accommodate one 4' wide door. |
8' #3A Round Track Packages for TWO doors Include:
(2 pair) Trolleys/Hangers and (1) 8 ft. section of #3A round rail track This 8' rail package kit can accommodate two 2' wide doors. |
|
12' #3A Round Track Packages for ONE door Include:
(1 pair) Trolleys/Hangers, (1) SC-3 Splice Collar, and (2) 6 ft. section of #3A round rail track This 12' rail package kit can accommodate one 6' wide door. |
12' #3A Round Track Packages for TWO doors Include:
(2 pair) Trolleys/Hangers, (1) SC-3 Splice Collar, and (2) 6 ft. section of #3A round rail track This 12' rail package kit can accommodate two 3' wide doors. |
|
14' #3A Round Track Packages for ONE door Include:
(1 pair) Trolleys/Hangers, (1) SC-3 Splice Collar, (1) 6 ft. section of #3A round rail track, and (1) 8 ft. section of #3A round rail track This 14' rail package kit can accommodate one 7' wide door. |
14' #3A Round Track Packages for TWO doors Include:
(2 pair) Trolleys/Hangers, (1) SC-3 Splice Collar, (1) 6 ft. section of #3A round rail track, and (1) 8 ft. section of #3A round rail track This 14' rail package kit can accommodate two 3'-6" wide doors. |
|
16' #3A Round Track Packages for ONE door Include:
(1 pair) Trolleys/Hangers, (1) SC-3 Splice Collar, and (2) 8 ft. section of #3A round rail track This 16' rail package kit can accommodate one 8' wide door. |
16' #3A Round Track Packages for TWO doors Include:
(2 pair) Trolleys/Hangers, (1) SC-3 Splice Collar, and (2) 8 ft. section of #3A round rail track This 16' rail package kit can accommodate two 4' wide doors. |
|
18' #3A Round Track Packages for ONE door Include:
(1 pair) Trolleys/Hangers, (2) SC-3 Splice Collar, and (3) 6 ft. section of #3A round rail track This 18' rail package kit can accommodate one 9' wide door. |
18' #3A Round Track Packages for TWO doors Include:
(2 pair) Trolleys/Hangers, (2) SC-3 Splice Collar, and (3) 6 ft. section of #3A round rail track This 18' rail package kit can accommodate two 4'-6" wide doors. |
|
20' #3A Round Track Packages for ONE door Include:
(1 pair) Trolleys/Hangers, (2) SC-3 Splice Collar, (2) 6 ft. section of #3A round rail track and (1) 8 ft. section of #3A round rail track This 20' rail package kit can accommodate one 10' wide door. |
20' #3A Round Track Packages for TWO doors Include:
(2 pair) Trolleys/Hangers, (2) SC-3 Splice Collar, (2) 6 ft. section of #3A round rail track and (1) 8 ft. section of #3A round rail track This 20' rail package kit can accommodate two 5' wide doors. |
|
22' #3A Round Track Packages for ONE door Include:
(1 pair) Trolleys/Hangers, (2) SC-3 Splice Collar, (1) 6 ft. section of #3A round rail track and (2) 8 ft. section of #3A round rail track This 22' rail package kit can accommodate one 11' wide door. |
22' #3A Round Track Packages for TWO doors Include:
(2 pair) Trolleys/Hangers, (2) SC-3 Splice Collar, (1) 6 ft. section of #3A round rail track and (2) 8 ft. section of #3A round rail track This 22' rail package kit can accommodate two 5'-6" wide doors. |
|
24' #3A Round Track Packages for ONE door Include:
(1 pair) Trolleys/Hangers, (2) SC-3 Splice Collar, and (3) 8 ft. section of #3A round rail track This 24' rail package kit can accommodate one 12' wide door. |
24' #3A Round Track Packages for TWO doors Include:
(2 pair) Trolleys/Hangers, (2) SC-3 Splice Collar, and (3) 8 ft. section of #3A round rail track This 24' rail package kit can accommodate two 6' wide doors. |
Round Track Accessories
SC-3 Track Splice Collar
|
SC-3
Track splice collars are used to connect sections of Round Track. |
3-FB Flashing Bracket
|
3-FB
Round-up Flashing bracket taps in with hammer. These brackets will allow you to attach a locally provided round track track cover. |
3 - FB 3.5 Flashing Bracket
|
3 - FB 3.5
Round Track Flashing bracket taps in for 3 1/2" Doors. These brackets will allow you to attach a locally provided round track track cover. |
3-EB End Blind
|
3-EB
End blind with Mounting Bolt. End Blinds do not stop the door. They are not strong enough. End Blinds keep birds from nesting in the track and give the ends of the track a finished look. |
The Round Track Sliding Door / Barn Door Type Trolleys fit all standard our Round Rail Barn Door Track options.
For #3 Round Track Only
(#3A & #3B Track Systems have brackets pre-attached at the factory.)
(#3A & #3B Track Systems have brackets pre-attached at the factory.)
Please check out our Sliding Door Accessories such as Door Stops, Door Pulls, Interior Latches, Stay Rollers, Bottom Guides and more!
