#8 Standard Box Track
400 lb Capacity
Top Mount Track with White Track Cover Attached
#8 Box Track
|

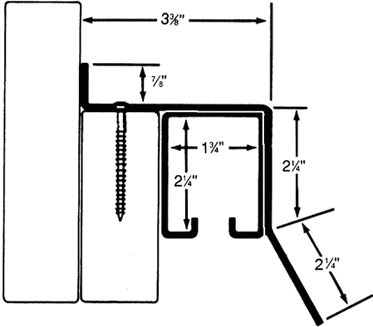

#8 Box Track Dimensions
|

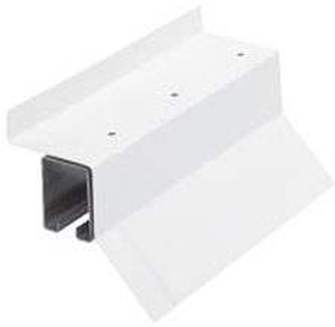

#8 Top Mount Box Track with White Cover
The ultimate labor-saving track. No brackets or flashing required with the pre-painted white cover; attach with 1-1/2" ring-shank neoprene washer nails. White cover is mechanically attached to box track and shields top of door from rain, snow, and ice.
Available lengths: 8' 10' 12' 14' 16' 20' 24'
#8 Track Packages
8' Sliding Packages with #8 Track and Choice of Trolley/Hanger Styles
For approximate weight of up to 400 pounds, #8 box rail requires no track brackets.
Contact us for pricing on longer track sections.
The #8 box rail kit is a single track only. For other applications, please email us or call 740-972-2275.
The ultimate labor-saving track. No brackets or flashing required with the pre-painted white cover; attach with 1-1/2" ring-shank neoprene washer nails. White cover is mechanically attached to box track and shields top of door from rain, snow, and ice.
Available lengths: 8' 10' 12' 14' 16' 20' 24'
#8 Track Packages
8' Sliding Packages with #8 Track and Choice of Trolley/Hanger Styles
For approximate weight of up to 400 pounds, #8 box rail requires no track brackets.
Contact us for pricing on longer track sections.
The #8 box rail kit is a single track only. For other applications, please email us or call 740-972-2275.
|
8' #8 Box Track Packages for ONE door Include:
(1 pair) Trolleys/Hangers and (1) 8 ft. section of #8 box rail track This 8' rail package kit can accommodate one 4' wide door. |
8' #8 Box Track Packages for TWO doors Include:
(2 pair) Trolleys/Hangers and (1) 8 ft. section of #8 box rail track This 8' rail package kit can accommodate two 2' wide doors. |
|
16' #8 Box Track Packages for ONE door Include:
(1 pair) Trolleys/Hangers and (2) 8 ft. section of #8 box rail track This 16' rail package kit can accommodate one 8' wide door. |
16' #8 Box Track Packages for TWO doors Include:
(2 pair) Trolleys/Hangers and (2) 8 ft. section of #8 box rail track This 16' rail package kit can accommodate two 4' wide doors. |
|
24' #8 Box Track Packages for ONE door Include:
(1 pair) Trolleys/Hangers and (3) 8 ft. section of #8 box rail track This 24' rail package kit can accommodate one 12' wide door. |
24' #8 Box Track Packages for TWO doors Include:
(2 pair) Trolleys/Hangers and (3) 8 ft. section of #8 box rail track This 24' rail package kit can accommodate two 6' wide doors. |
|
#8 Track End Blinds (8-EB End Blinds)
#8 Track End Blinds fit at the end of the track to keep it free from birds, weather and other obstructions. End blinds work with #8 track. Bolt and nut included. Contact us to add #8 end blinds to your #8 box track package. End Blinds do not stop the door. They keep birds out of the track and give the track ends a finished look. |
#8 Track End Blinds (8-EB End Blinds)
|
Please check out our Sliding Door Accessories such as Door Stops, Door Pulls, Interior Latches, Stay Rollers, Bottom Guides and more!
